| सुरक्षा रेटिंग: | आईपी20 | ऊंचाई: | 15 मिमी |
|---|---|---|---|
| आवास आधार: | धातु | ऑपरेटिंग वोल्टेज: | 5... 25 वोल्ट |
| मापने की प्लेट का पता चला: | ≥ 3 एमए | भार: | 0 ... 800 Ω |
| शिपिंग वजन: | 1 कि.ग्रा | मानक लक्ष्य प्लेट: | 20 मिमी x 20 मिमी |
| आउटपुट शक्ति: | 975 एमडब्ल्यू | वोल्टेज: | 17 वी 20 एमए पर |
| प्रमुखता देना: | flush mount inductive proximity sensor,Wenglor proximity sensor with warranty,industrial inductive sensor flush mount |
||

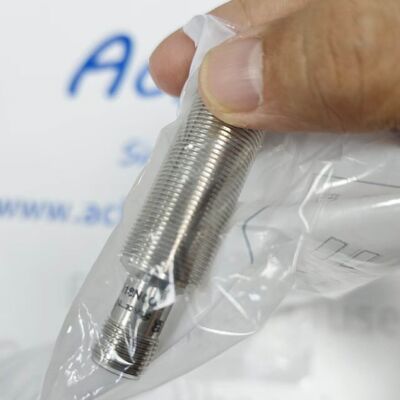

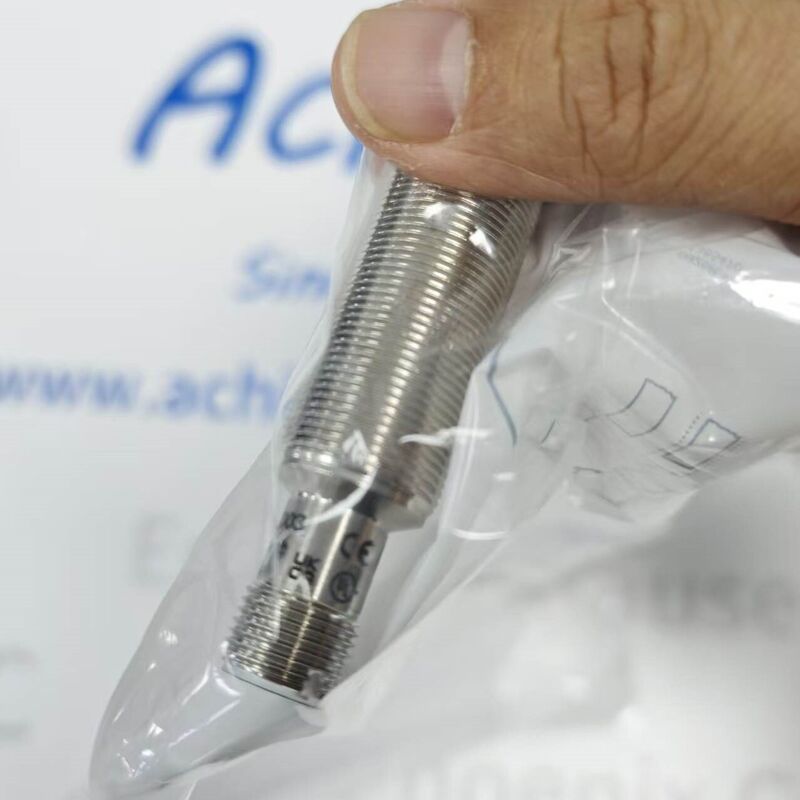

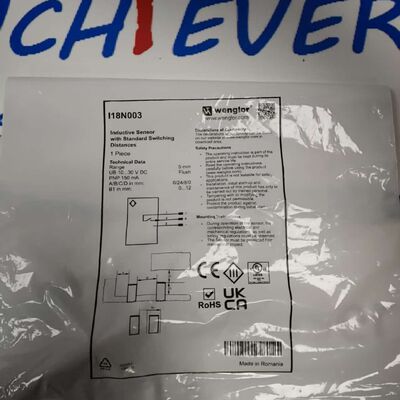

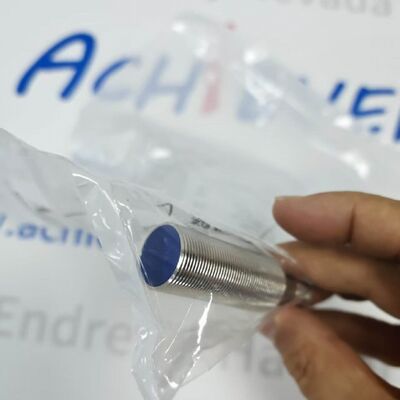

Wenglor I18N003 Flush Mount Inductive Proximity Sensor
Description:
Manufacturer : Wenglor
Product No. :I18N003
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Electrical Parameter | Standard Datasheet Value |
|---|---|
| Model Code | I18N003 |
| Manufacturer Brand | Wenglor |
| Product Type | Flush Mount Inductive Proximity Sensor |
| Rated Supply Voltage | 10 VDC ~ 30 VDC |
| No-load Current Consumption (@24VDC) | < 12 mA |
| Output Configuration | PNP Normally Open (NO) |
| Maximum Rated Switching Load Current | 150 mA |
| Off-state Residual Leakage Current | < 100 µA |
| Output Terminal Voltage Drop | < 1 V |
| Maximum Operating Switching Frequency | 1110 Hz |
| Switching Hysteresis | < 10% of nominal sensing distance |
| Temperature Drift Coefficient | < 10% |
| Built-in Circuit Protection | Reverse Polarity / Short Circuit / Overload Protection |
| Electrical Protection Class | Class III |
| Global Compliance Certification | CE, IEC 60947-5-2 |
| Mechanical & Environmental Item | Official Datasheet Details |
|---|---|
| Housing Thread Dimension | M18×1 cylindrical thread |
| Body Raw Material | Nickel-plated CuZn Brass |
| Installation Type | Full Flush Mount |
| Nominal Effective Sensing Distance | 5 mm |
| Material Correction Factor (V2A Stainless Steel) | 1.10 |
| Material Correction Factor (Brass / Copper) | 0.45 |
| Material Correction Factor (Aluminum Alloy) | 0.41 |
| Ingress Protection Grade | IP67 |
| Working Ambient Temperature Range | -40°C ~ +80°C |
| Storage Temperature Range | -45°C ~ +85°C (Non-condensing atmosphere) |
| Allowed Ambient Humidity | 0~95% RH, condensation prohibited |
| Electrical Connection Mode | M12×1 3-pin plug connection |
| Working Status Indicator | Yellow LED |
| Standard Mount Clearance Dimensions | A=0mm, B=24mm, C=8mm, D=0mm |
