उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्रकार: | वायवीय सिलेंडर | आवास की चौड़ाई: | 44 मिमी |
|---|---|---|---|
| स्थापित करने की स्थिति: | कोई भी अभिमुखीकरण | सील सामग्री: | एनबीआर (नाइट्राइल रबर) |
| नाममात्र प्रवाह दर (डीआईएन 1343): | 1600 एल/मिनट | दबाव विनियमन सीमा: | दबाव विनियमन सीमा |
| प्रमुखता देना: | Festo pneumatic cylinder DSBC-32-100,Standard pneumatic cylinder with PPVA,Festo cylinder DSBC-32-100-PPVA-N3 |
||
Description:
Manufacturer : Festo

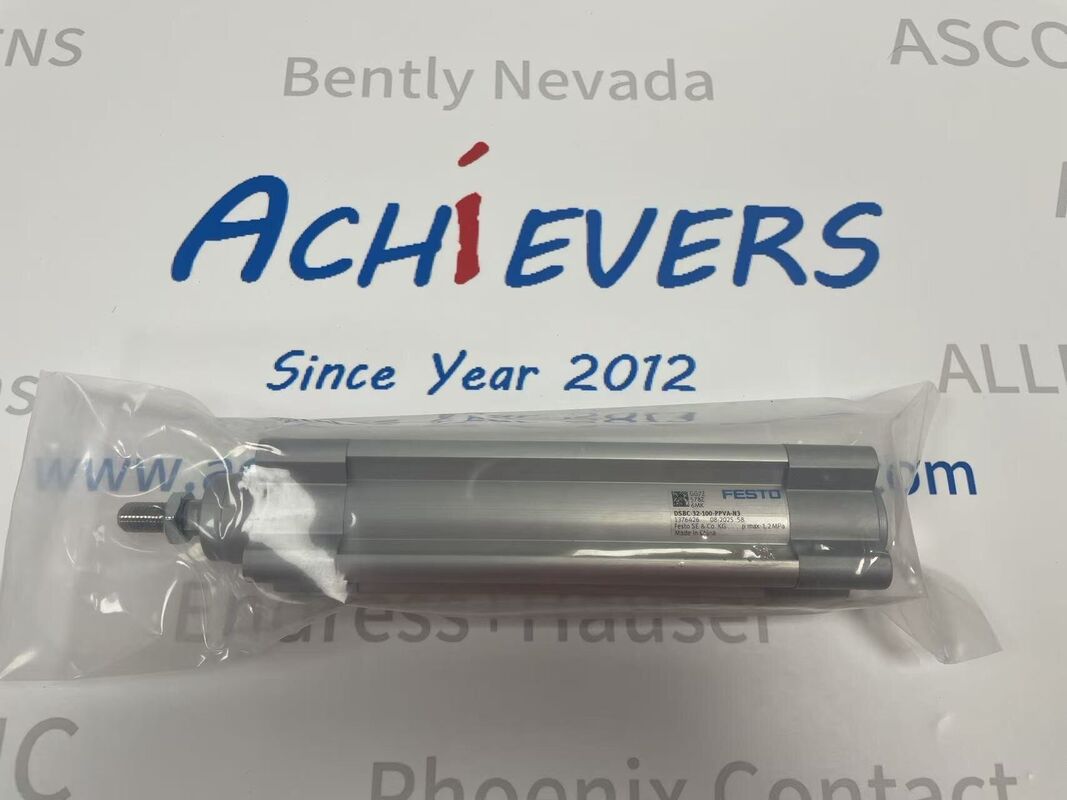

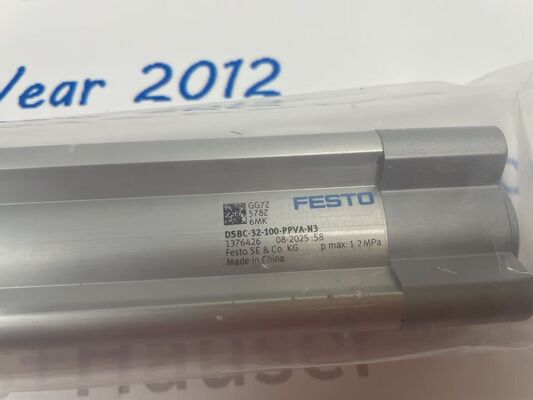

Product No. : DSBC-32-100-PPVA-N3
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|
Product Model
|
Festo DSBC-32-100-PPVA-N3
|
|
Order Number
|
1376426
|
|
Product Type
|
ISO Standard Pneumatic Cylinder
|
|
Mode of Operation
|
Double-acting
|
|
Piston Diameter
|
32 mm
|
|
Stroke Length
|
100 mm
|
|
Piston Rod Thread
|
M10x1.25
|
|
Operating Pressure Range
|
0.6 bar - 12 bar (0.06 MPa - 1.2 MPa)
|
|
Theoretical Force (6 bar)
|
Advance: 483 N; Return: 415 N
|
|
Cushioning
|
Pneumatic cushioning, adjustable at both ends
|
|
Position Detection
|
Via proximity switch
|
|
Pneumatic Connection
|
G1/8
|
|
Characteristic
|
Specifications
|
|
Housing/Cover Material
|
Coated die-cast aluminium
|
|
Piston Material
|
Wrought aluminium alloy
|
|
Piston Rod Material
|
High-alloy steel
|
|
Cylinder Barrel Material
|
Smooth-anodised wrought aluminium alloy
|
|
Operating Temperature Range
|
-20 °C to +80 °C (-4 °F to +176 °F)
|
|
Corrosion Resistance Class
|
CRC 2 - Moderate corrosion resistance
|
|
Weight
|
Basic weight (0 mm stroke): 465 g; Additional 27 g per 10 mm stroke
|
|
Moving Mass
|
110 g (0 mm stroke); Additional 9 g per 10 mm stroke
|
|
Compliance & Certifications
|
RoHS Compliant; VDMA24364-B1/B2-L (PWIS); ISO 14644-1 Class 6 (Cleanroom); Conforms to ISO 15552
|
|
Operating Medium
|
Compressed air, conforming to ISO 8573-1:2010 (7:4:4)
|
